2.252k Medical NTC Thermistor Sensors For Human Body Surface Disposable

Name: 2252k Medical NTC Thermistor Sensors For Human Body Surface Disposable
Brand: JINGPU SENSOR
Price: 1 USD

Wholesale 2.252k Medical NTC Thermistor Sensors For Human Body Surface Disposable from china suppliers

Brand Name : JINGPU SENSOR

Model Number : JP407

Certification : CE, ISO13485, RoHS, ISO9001

Place of Origin : Anhui, China

MOQ : 500 Pieces

Price : To be negotiated

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2 Weeks

Packaging Details : Standard Packaging

Nominal resistance value : R25℃=2.252KΩ

Tolerance : (25 ~ 45) ℃ ± 0.1 ℃

Operation Temperature Range : 0℃~50℃

B value : B25/50=3935

Chip : NTC Chip

Tube : PI tube

Cable : PVC Cable

Plug : PVC Plug

Contact Now

2.252k Medical NTC Thermistor Sensors For Human Body Surface Disposable

Product Description:

The JP407 disposable medical body surface temperature sensor is widely used in the measurement of human body surface temperature. The sensor probe is a polyimide tube, and the nominal resistance value of the product is 2.252KΩ. The total length of the product is generally 0.7 ~ 0.9 meters, and the measurement tolerance is (25 ~ 45) ℃ ± 0.1 ℃.

Features:

Disposable

Tolerance:(25~45)℃±0.1℃

Operation Temperature Range: 0℃~50℃

Can be equipped with an extension connector

R25℃=2.252KΩ

B25/50=3935

With foam sticker

Application:

Compatible with monitors, suitable for emergency clinic, ICU, operation room, etc.

Continuous monitoring of patient temperature.

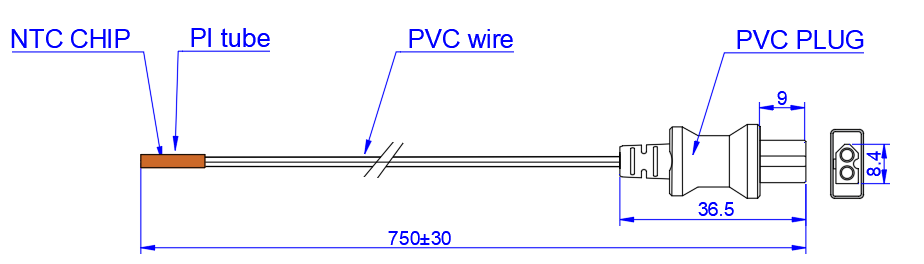

Structure and Dimensions(mm):

2.252k Medical NTC Thermistor Sensors For Human Body Surface Disposable

Electrical Specification:

Item	Code	Test condition	Performance requirements	Unit
(Rated resistance)	R25℃	+25℃±0.02℃	2.252	kΩ
(B value)	B25/50	+25℃±0.02℃, +50℃±0.02℃	3935	K
(Response time)	τ	23℃(air)→44℃(water),≤±0.1℃	≤60	S
(Max.Energy Dissipation)	Pmax	In water(≤1.2mA),≤0.02℃	Approx 50	μW
(Withstand voltage)	Hi-pot	AC750V 1mA 1s In still air	No break down	V
(Operating Temp. Range)	OTR	In still air	0～50	℃
